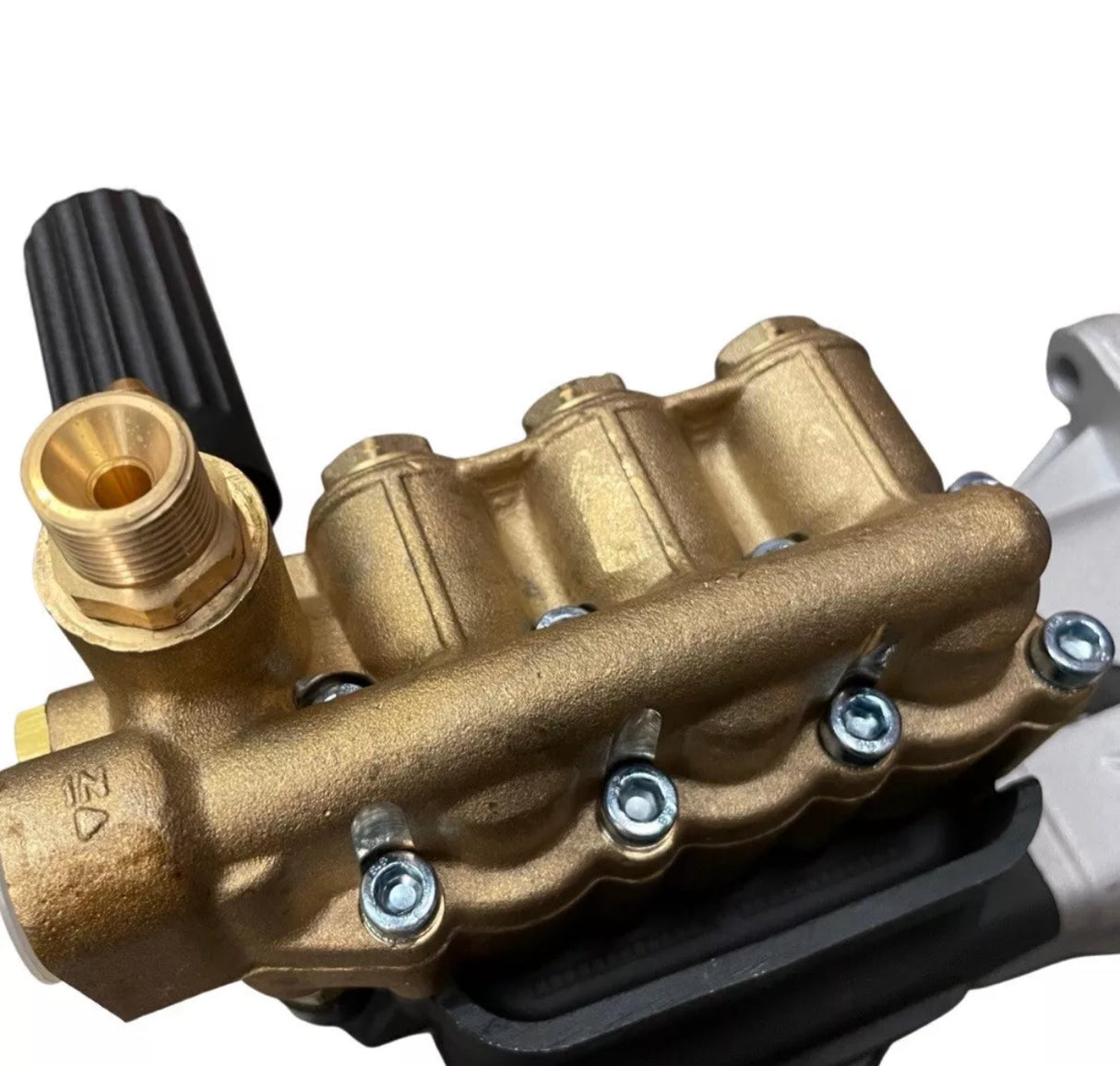

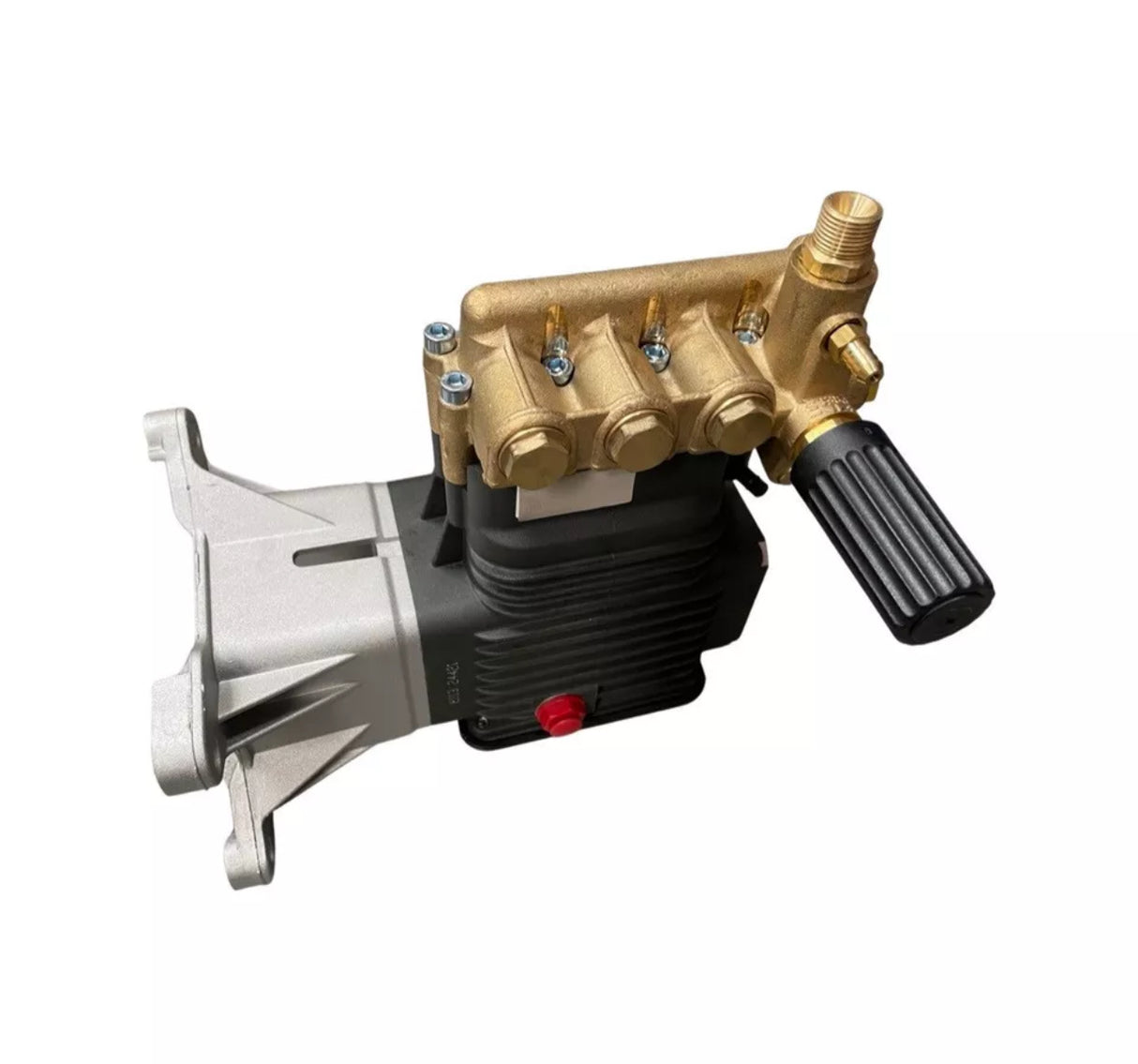

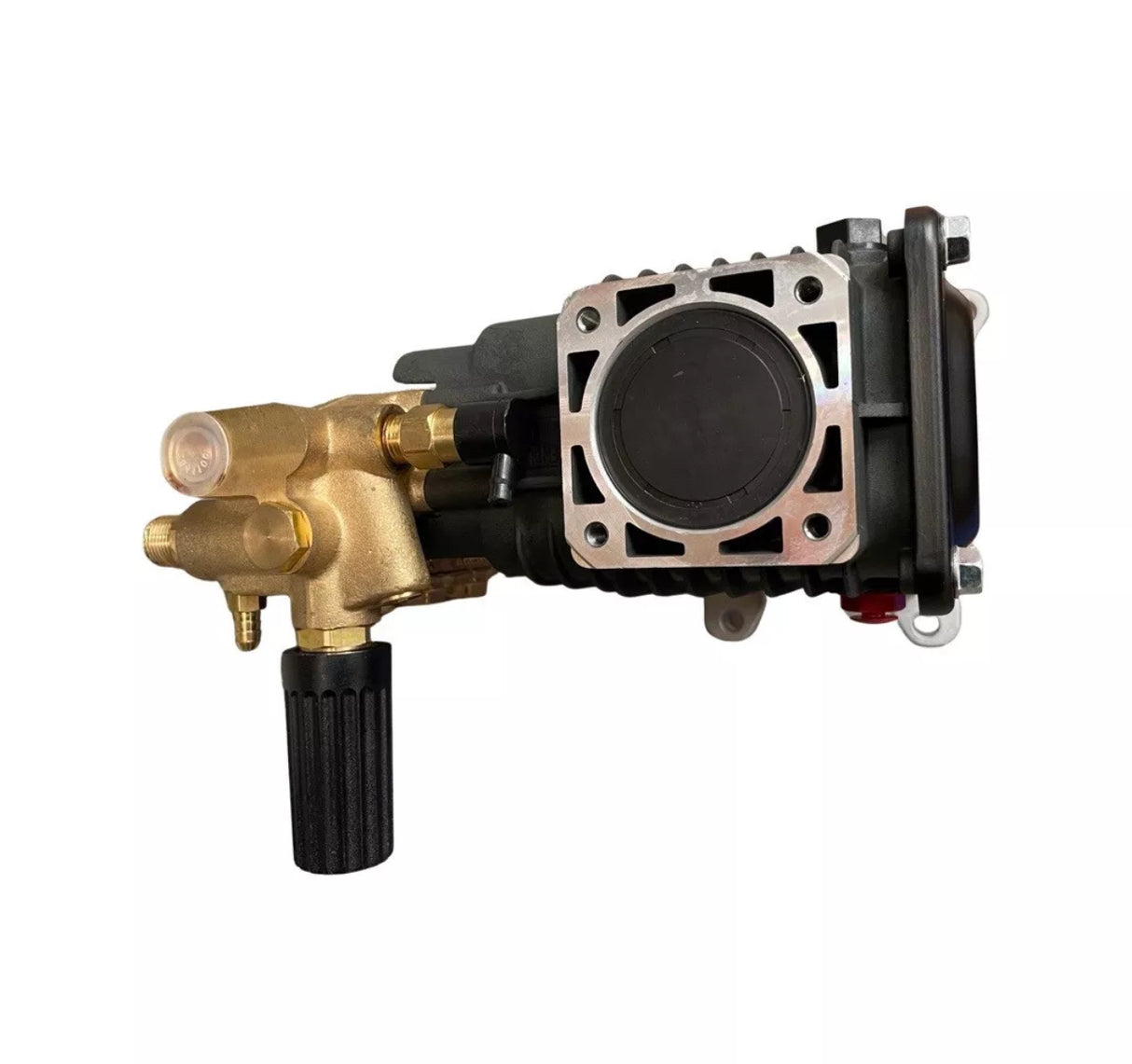

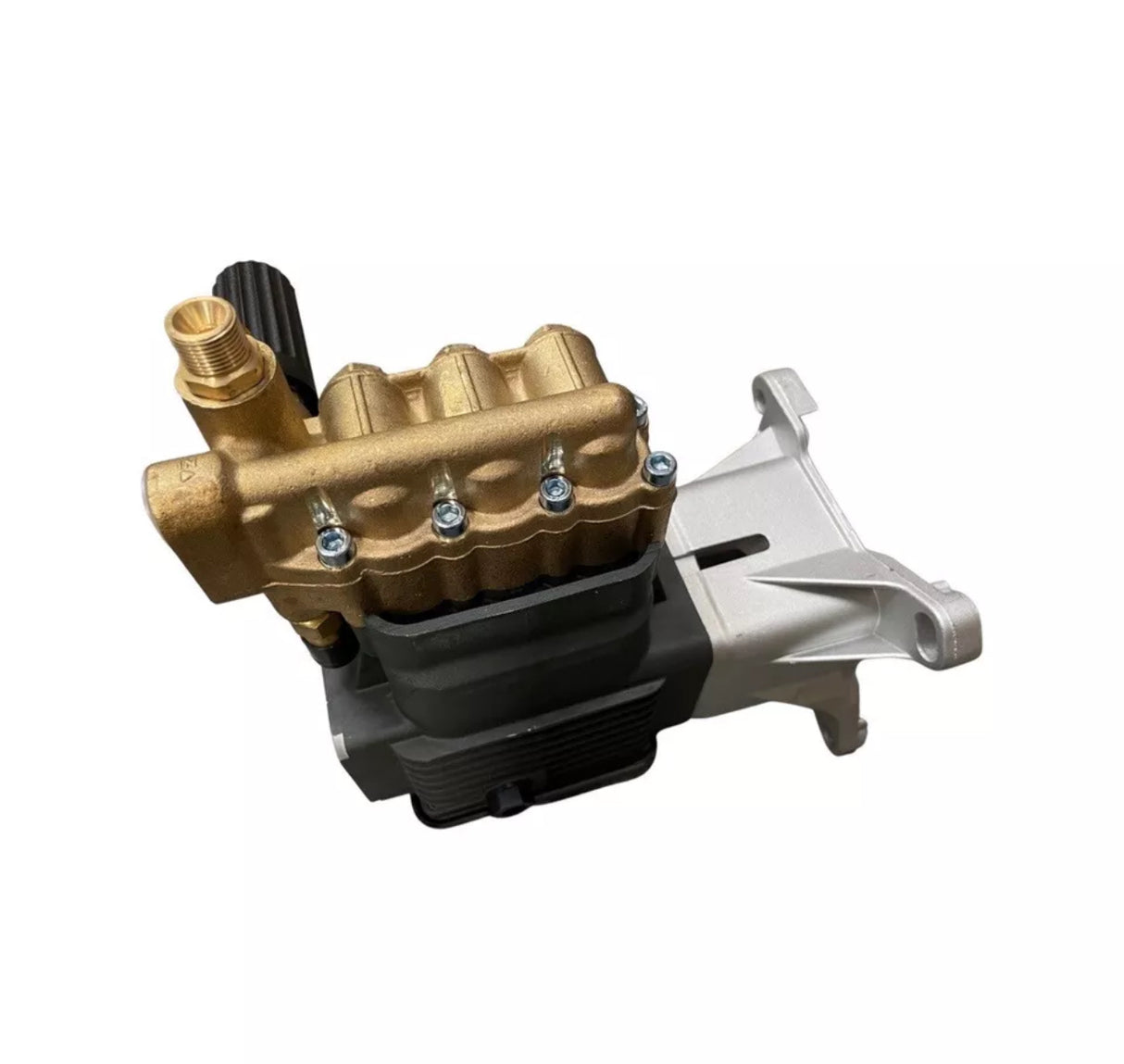

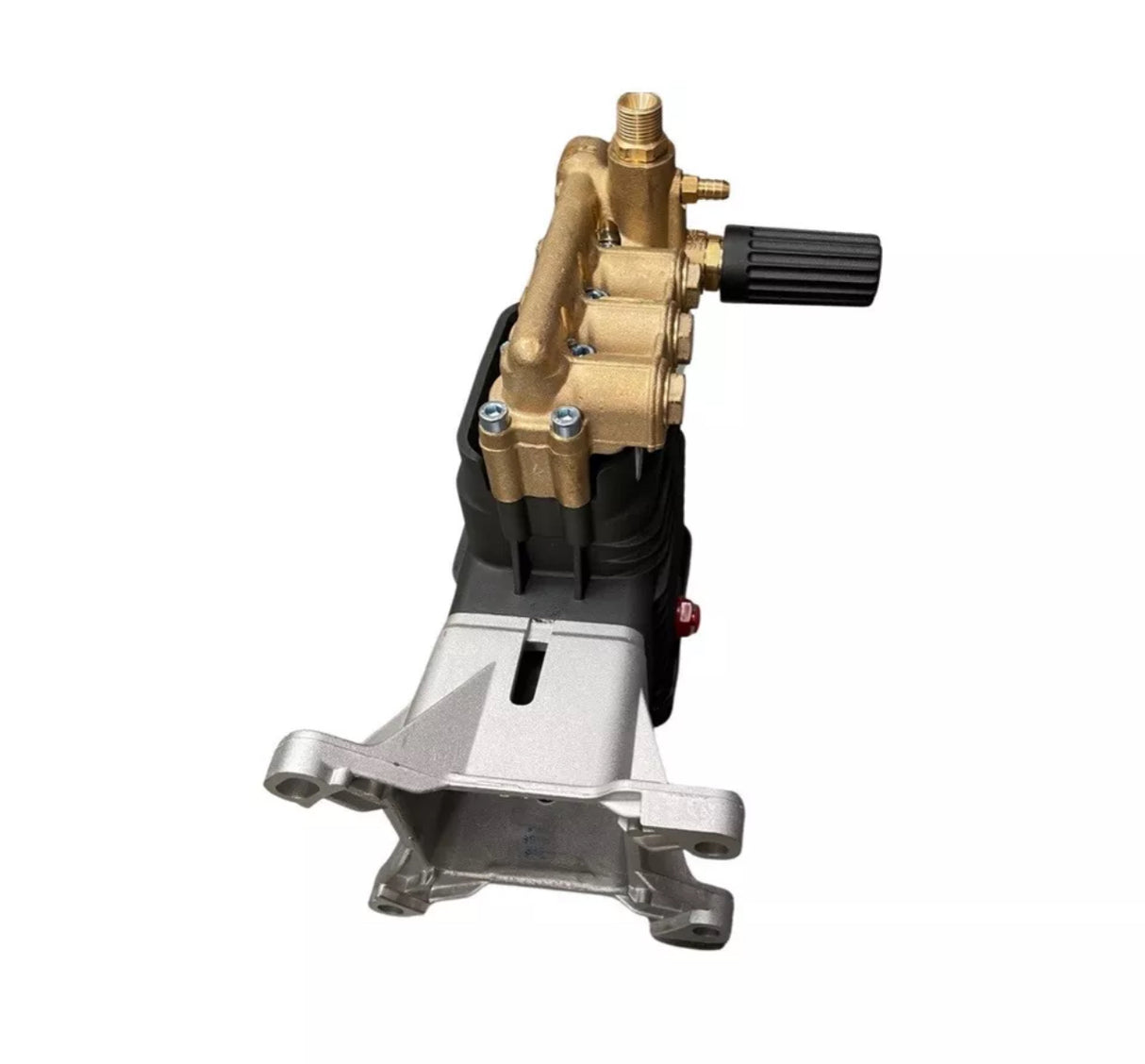

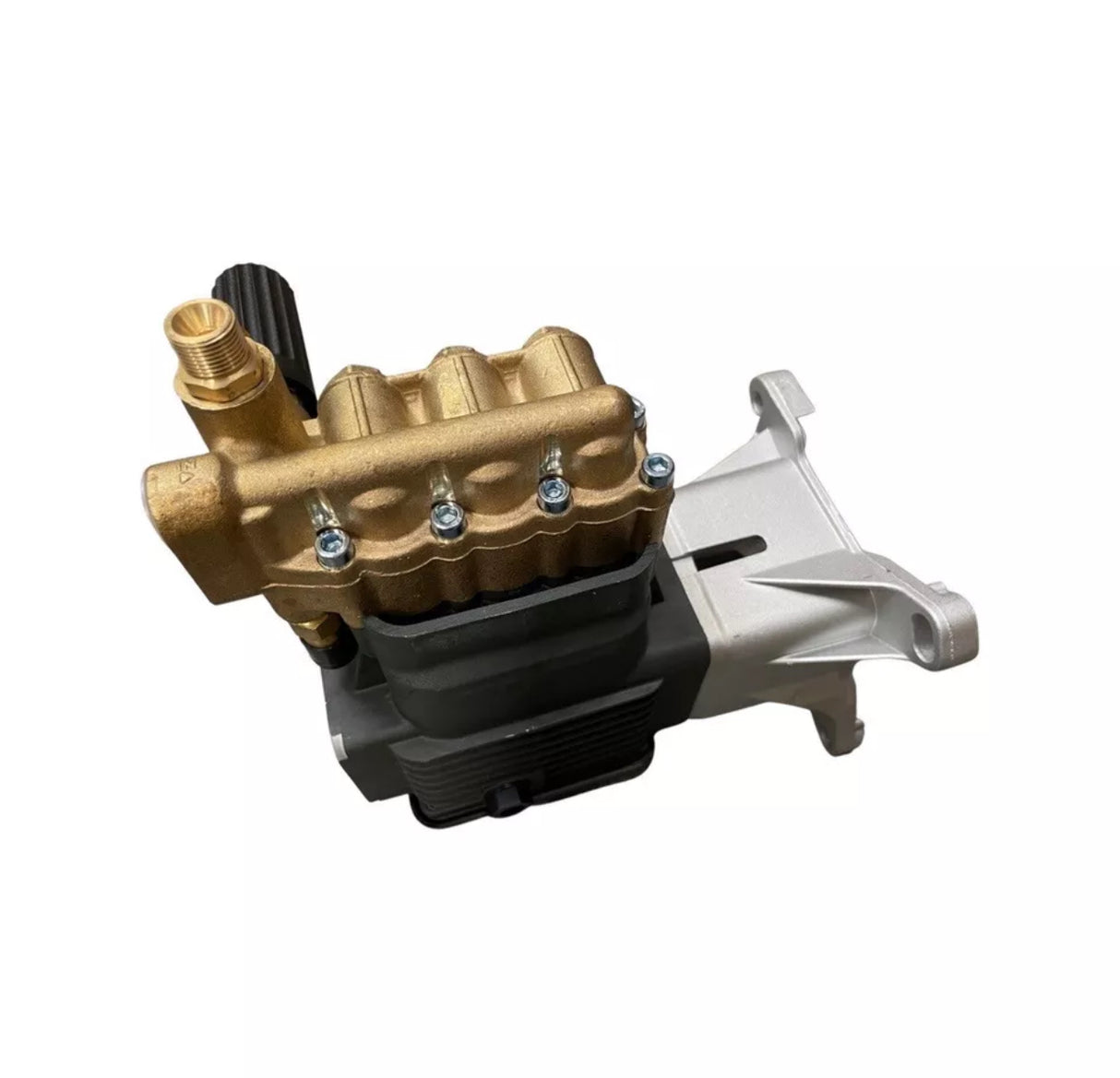

1066009- Annovi Reverberi RSV4G40 Triplex Pump Hyundai HYW4000P P4200PWT

The RSV4G40 Annovi Reverberi has a 1" hollow shaft and 15.1 litres per min @ 275 bar or 4000PSI, it can be driven by a range of engine either directly or with a flexible joint. This features ceramic-coated stainless steel pistons, pump head in pressed brass & double gasket sealing system.

RSV4G40 Annovi Reverberi Hollow Shaft Pump

3400 RPM ideal to be driven directly by an engine.

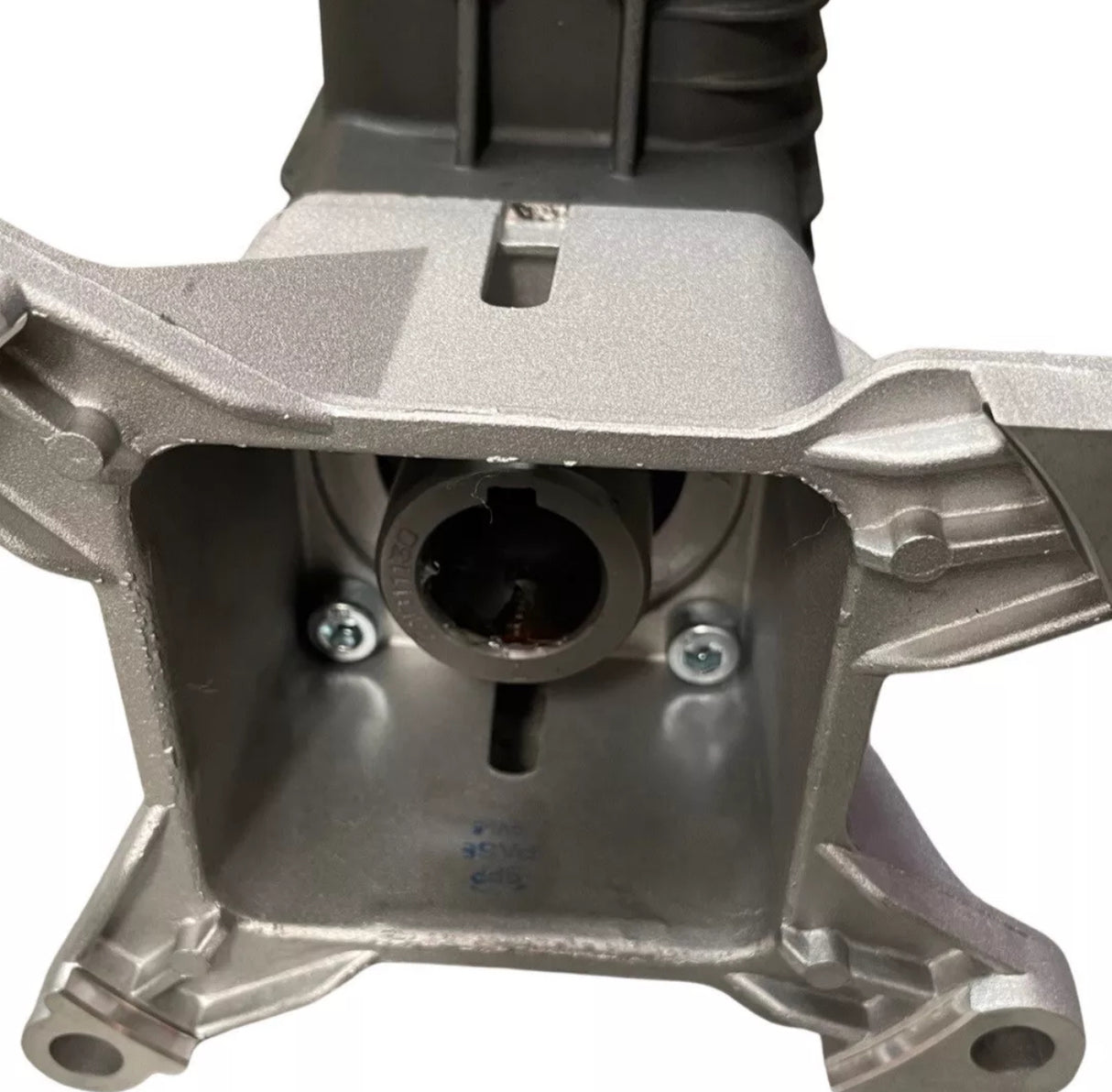

The pump has a 1″ hollow shaft and includes an integrated unloader valve with chemical injector

15.1 Litres per minute @ 275 Bar / 4000 PSI

11 HP required to run at full pressure

• 3-piston alternating volumetric pumps for use on cleaning units and industrial systems
• Can be coupled to various types of motors, directly or with flexible joint
• Flange for gasoline engine ø1″ SAE J609a included
• Pump body in die-cast aluminium alloy with an oil drain outlet
• Rear cover in die-cast aluminium alloy
• 3/8" BSPF inlet, 3/8" BSPM unloader outlet
• Pistons are driven by crank-connecting rod mechanism
• Pump shaft in pressed high-strength steel. Oversized friction bearings. Connecting rods in bronze
• Pistons in ceramic-coated stainless steel
• Pump head in pressed brass. Double gasket sealing system
• Delivery valves inspectable
• Integral regulating valve
• Weight 7 Kgs
